Advantages of mobile asphalt plant


Mobile asphalt mixing plant has distinct advantages over stationary asphalt drum mix plant.

Mobile asphalt plant components come arranged on three or four chassis.
Each chassis is pre wired with junction box.

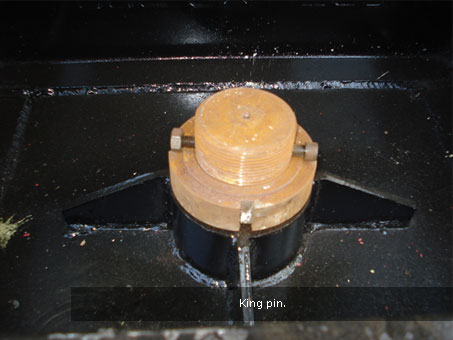

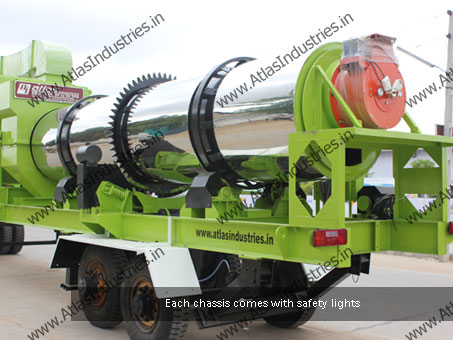

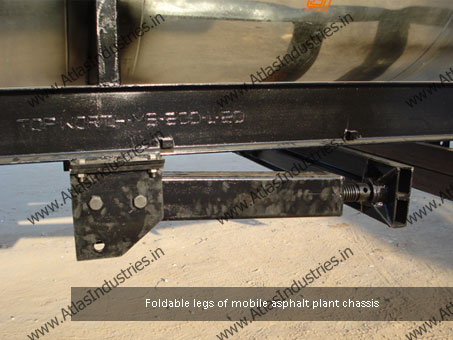

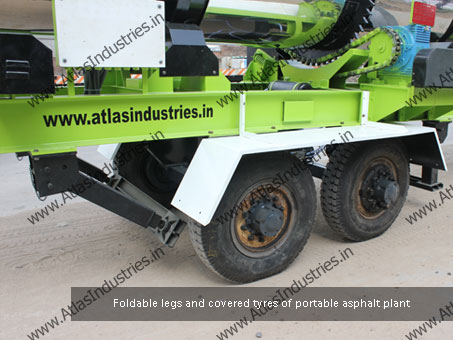

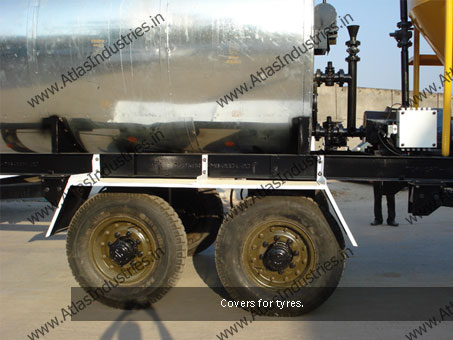

Each chassis of mobile asphalt drum mix plant is equipped with safety lights, cover for tyres, king pin, axles with pneumatic braking and foldable legs.
The portable asphalt drum mixers are as productive as the stationary asphalt mixers.
Tyres tubes and wheel rims are on customer’s scope of supply, they can be provided by Atlas Industries if required by the customer.
Some of the distinct advantages of portable asphalt plant over stationary drum mix plants are:
Quick installation and commissioning
No or less foundation
Standard plant comes in three or four chassis.
Built on a rugged structure
Storage silo can be made available.
Size of bitumen storage tank can be customized as required.
The drying and mixing drum and the venturi type wet dust collector units are bolted for quick assembly and installation.
Chassis arrangement of MDM 45 (40-60 tph) – mobile asphalt drum mix plant:

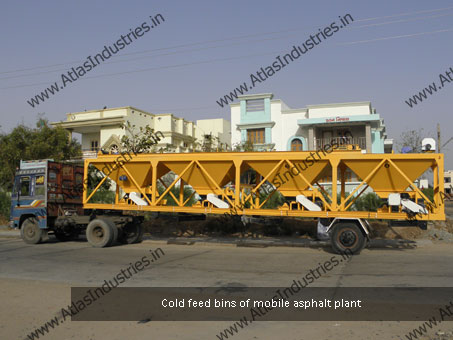

Feeder on one chassis with single axle

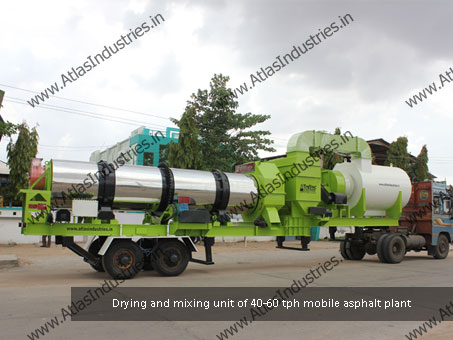

Drying and mixing unit with pollution control device on one chassis with two axles

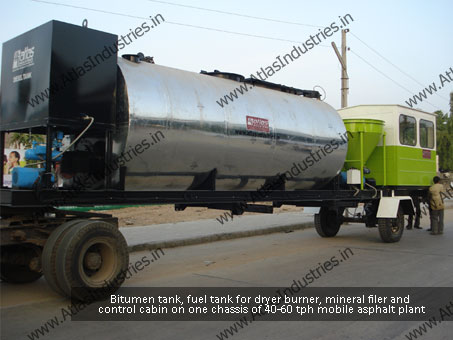

Fuel tank for dryer burner, mineral filler, standard 15 T bitumen tank and control cabin on one chassis

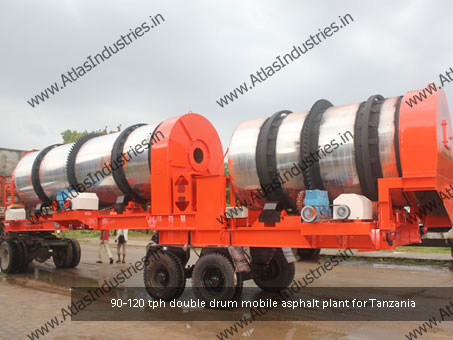

Chassis arrangement of MDM 50 (60-90 tph) and MDM 60 (90-120 tph) – mobile asphalt mixer:
Feeder on one chassis with single axle

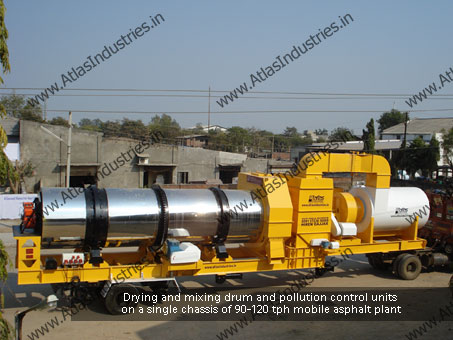

Drying and mixing unit with pollution control device on one chassis with two axles

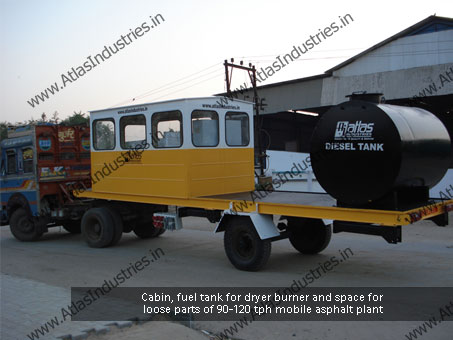

Fuel tank for dryer burner, mineral filler and standard 20 T bitumen tank on one chassis
Control cabin on separate chassis on one axle
